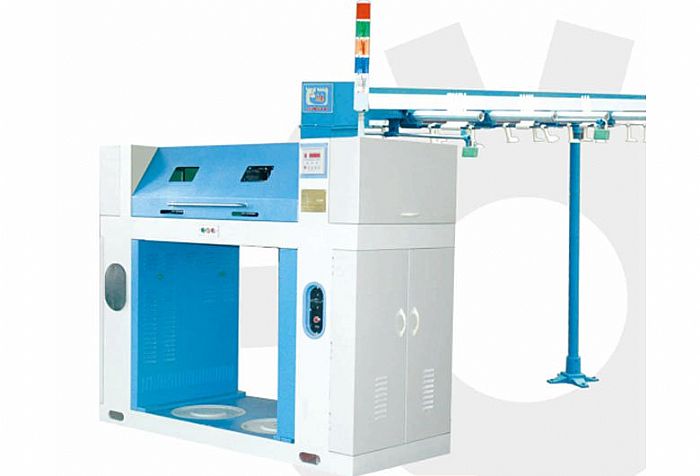

FA305C high-speed draw frame absorbs many advantages of textile machinery, its advantages are fast delivery speed, fine manufacturing, high degree of automation, good quality of slivers, etc., suitable for many fibers with a length of 22-76mm, and the maximum delivery speed is 406m/min.
1. Applicable optical fiber length: 22-76mm
2. Delivery quantity: 2 holes
3. Output speed: 204-406m/min
4. Drafting method: three up and three down with pressure rod drafting
5. Drafting multiple: 5.6005-9.5398 (one and three rollers)
6. Number of feeding strips: 6-8 pcs
7. Feed pipe size:
The first feeder: φ600*900 φ600*1100
輸出：φ400*900 φ600*1100
Second feeder: φ400*900 φ400*1100
輸出：φ400*900 φ400*1100 φ350*900
8、上輥直徑：35mm
9、下輥直徑：35mm
10. Upper roller pressure: unilateral pressure 30, 35kg
11. Motor/main motor: 3.5/0.8kw
12. Dust suction motor: 0.75kw
|
