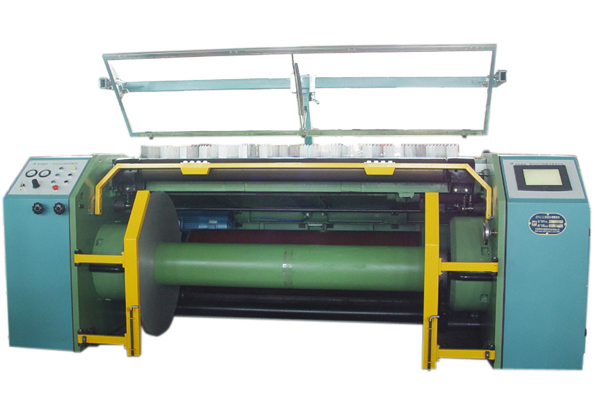

| HFGA 121 High Speed Direct Warping Machine |
| Post Date :2008-07-08 |
| Expire Date :2009-07-08 |
 View Basket |
| Detailed Trade Lead Description |
Technical characteristics
● With DELTA inverter to ensure wide speed scope and constant surface speed winding.
● SEIMENS PLC available to achieve fully automatic programmable control on loading/doffing, clamping, pressuring, start/stop of machine and peed adjusting as well as has yarn broken broken memory.
● 10.4-inch PRO-FACE touch screen from Japan, easy operation, rich information content,comprehensive trouble shooting and analyze.
● Special disc spring shockproof device available between the oscillating arms and main shaft to inprove reliability and steady of machine running and also starting/stopping.
● Perfect pneumatic system applied for controlling the warp beam lifting, clamping and Pressurzing of pressure roller, and also provide pressure for the hydraulic braking system.
● Hydraulic disc brakes originally for SANTANA Car are specified for warp beam and pressing roll, braking force adjustable automatically according to different roating speed. Pressure gauge available.Pneumatic pressure source drive the oil motion.Two high quality electromagnetic brakes are specified for guide roller,side brake at low speed and double sides brake at high speed to ensure good brake effect.
● Side frames are made of high quality cast iron and is good in structure, high in rigidity and more reliable in running.
● The roller pressurizes parallelly along the fixed straight rail inclined 15o , no vibration and less noise when machine runing at high speed, pressure adjustable stepless and can be displayed on the pressure gauge, this ensure the optimal yarn build-up.The pressure roller swings away upon braking.
● Strong beam supporting mechanism and safety device ensure the beam running at high speed not to drop in case of sudden power or gas failure,avoil injuring operator.
● Special interlocked counting length device for main shaft and pressure roller ensure high precision measurement.
● Expansion reed movabl up and down, left and right, intermittent blowing device a vailable to keep comb clean.Blowing time gap and period can be set freely. The swing and frequency of expansion reed differs from different rotating speed of beam.
Technical Parameters
1. Working width: 1600mm,1800mm(standard)and 2000mm
2. Beam dia: Φ800mm、Φ1000mm
3. Warping speed: 0-1000m/min for beam dia.800mm
0-800m/min for beam dia. 1000mm
4. Braking distance: ≤4.5m at the max.Speed
5. Driving form: Driven by motor after two steps of gear reduciton.
6. Expansion reed: W-shaped,movable up and down, left and right, joint acts with
warp beam mechanism, diaplace scope: 0-20mm
7. Pressurizing mode: pressurizng parallelly along the inclined straight rail,pneumatic
control,pressure adjustable stepless.
8. Power of main motor: 15Kw motor with inverter.
9. Length counting: warping beam and pressure roller interlocked length couting,length .
counting accuracy:0.1%
10. Weight of machine: about 3600Kg
11. Overall dimensions(L×W×H):
1600mm 3500mm×2100mm×2040mm
1800mm 3700mm×2100mm×2040mm
2000mm 3900mm×2100mm×2040mm
|
|
|
